How to Align Garage Door Safety Sensors Correctly

A garage door that starts down, then reverses or refuses to close is more than an everyday annoyance. It can leave your home exposed, interrupt your morning, and create a real safety concern around children, pets, vehicles, and stored belongings. Before assuming the opener has failed, check the photo-eye sensors. Knowing how to align garage door safety sensors can solve many closing problems quickly, provided the sensors and wiring are in good condition.

These small devices sit near the bottom of the door tracks, usually 4 to 6 inches above the floor. One sensor sends an invisible beam to the other. When that beam is broken or the sensors are out of alignment, the opener is designed to stop the door from closing or reverse it. That protection is required on modern residential garage doors for good reason.

What Misaligned Safety Sensors Look Like

A sensor issue usually has a recognizable pattern. The garage door may close only when you hold down the wall button, begin closing and immediately reverse, or refuse to move downward while the opener light flashes. You may also notice a blinking light on one or both sensor units.

Most systems use a solid light to show that a sensor has power and a clear beam connection. A blinking or unlit indicator often points to misalignment, a blocked lens, loose wiring, or a failed sensor. Light colors vary by opener brand, so check the label on the opener or the owner's manual if you are unsure what your lights mean.

Do not assume every reversing door has a sensor problem. A door that binds in the tracks, has damaged rollers, or has incorrect opener force settings can show similar symptoms. If the door is heavy, crooked, noisy, or moves unevenly, stop using it and have the full system inspected.

How to Align Garage Door Safety Sensors

Start by making the area around both sensors safe and easy to inspect. Keep the door fully open if possible, and make sure no one operates the opener while you are working near the tracks. Never disconnect springs, cables, or other high-tension door parts to reach a sensor. The sensor brackets are low on the tracks and normally accessible without touching those components.

Clean the lenses and clear the path

First, look for the simple causes. A broom, box, bike tire, snow buildup, leaves, or even a spiderweb can interrupt the beam. Wipe each sensor lens gently with a clean, soft cloth. Avoid abrasive cleaners or rough materials that can scratch the lens.

Then look straight across the garage floor between the two sensors. The beam path should be clear from one side of the opening to the other. This matters in garages where tools, storage bins, and seasonal items gradually migrate toward the door.

Check the brackets before moving anything

Each sensor should face directly toward the sensor on the opposite track. The brackets can get bumped by trash cans, lawn equipment, vehicles, or a child playing in the garage. Look for a sensor that is tilted, hanging loose, or sitting noticeably higher or lower than the other side.

If a bracket screw is loose, support the sensor with one hand and tighten the fastener just enough to hold it in place. Do not overtighten it. A bent bracket may need to be carefully straightened or replaced, especially if it will not keep the sensor pointed where it belongs.

Aim the sensors until the indicator lights are steady

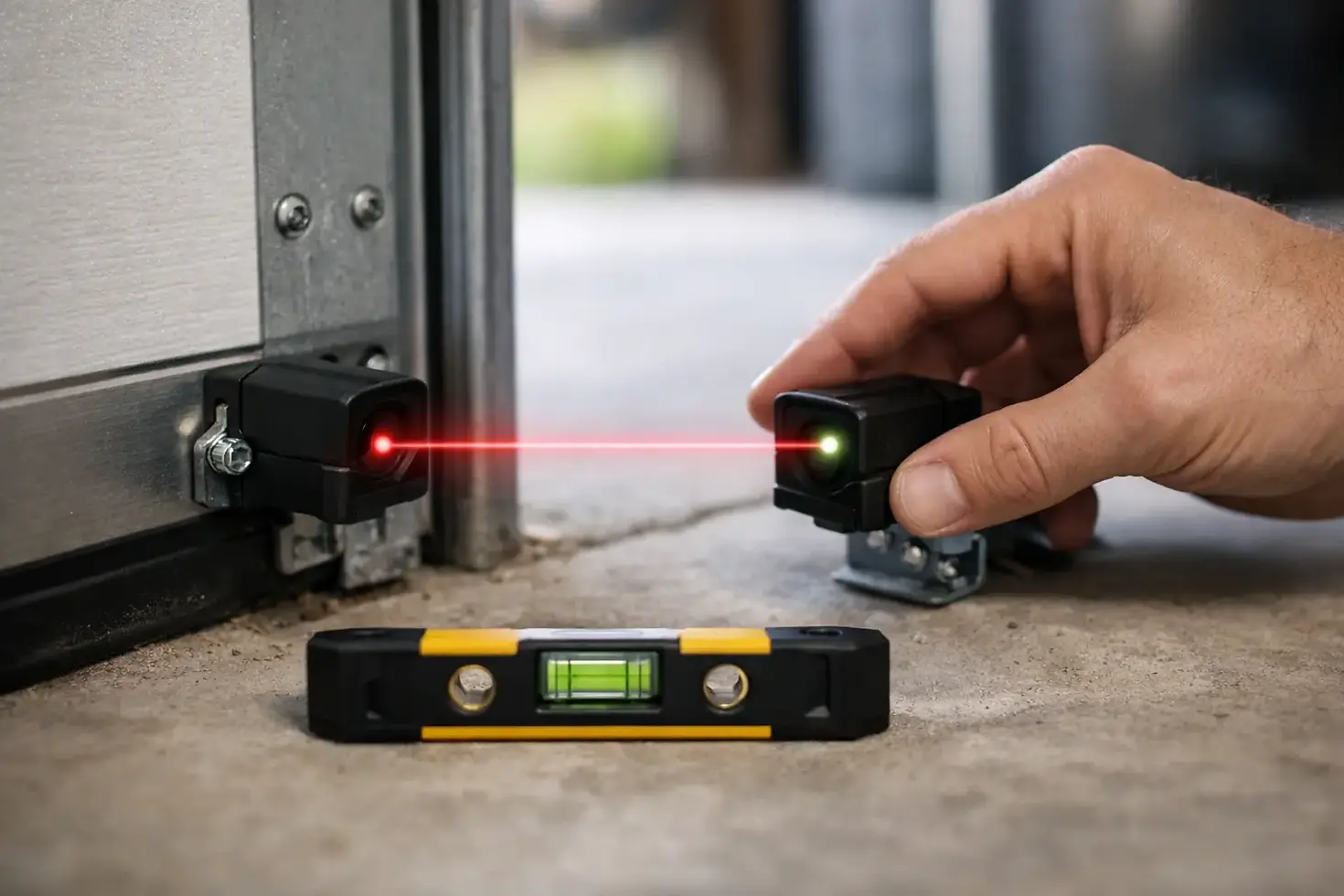

Loosen the sensor wing nut or mounting screw slightly so the sensor can move. Adjust it slowly up, down, and side to side while watching the indicator light. When the beam is connected, the receiving sensor light should turn solid. Tighten the mounting hardware while holding the sensor in position, then confirm the light stays steady.

It helps to compare height from the floor on both sides. The sensors do not have to be measured with construction-level precision, but they should be mounted at approximately the same height and pointed directly at each other. A tape measure can help when one bracket has shifted significantly.

Once both lights are steady, test the door from a safe distance. Close it using the wall button or remote, then place a solid object in the beam path and try again. The door should not close while the beam is blocked. Remove the object and make sure the door completes a normal closing cycle.

Problems Alignment Will Not Fix

If the lights never become solid, alignment may not be the problem. The sensors need power and an intact connection to the opener. Look for damaged, pinched, or loose low-voltage wires running from the sensors along the tracks and ceiling. Rodent damage, corrosion, staples driven too tightly into the wire, and a wire pulled loose from its terminal can all interrupt the signal.

Sunlight can also interfere with some photo-eye systems. If the problem happens only at a certain time of day, bright direct sun may be hitting the receiving sensor. Slightly repositioning the sensor within its bracket can help, but do not move it so far that it is no longer aimed squarely across the opening. In some cases, a small manufacturer-approved sun shield or sensor replacement is the better fix.

Moisture is another common issue in Greater Cincinnati and Northern Kentucky garages. Condensation, road salt, and water intrusion can corrode sensor connections or damage older wiring. A sensor may work inconsistently for weeks before failing completely. If the lights flicker when the door vibrates or during wet weather, a technician should inspect the wiring and sensor pair rather than simply readjusting the brackets.

Do Not Bypass the Safety System

Holding the wall control down may force many openers to close when the sensors are not communicating. That feature can help you secure the door temporarily, but it is not a repair and should never become your routine. You must keep the button pressed the entire time because the opener is bypassing its normal photo-eye protection.

Do not tape sensors together, disable them, cut wires, or alter the opener to make the door close. A garage door can cause serious injury or property damage if it closes on a person, pet, vehicle, or object. If a sensor system cannot be restored quickly, leave the door open only when the area is supervised or arrange professional service to secure the opening safely.

When to Call for Garage Door Sensor Repair

A homeowner can often fix a simple blockage or bumped sensor bracket. Call for service when the sensors will not hold alignment, the wiring is damaged, brackets are bent, lights remain off, or the door still reverses after the beam test passes. It is also wise to call if the door has come off track, the opener is making unusual sounds, or you suspect a broken spring.

For property managers and businesses, sensor problems deserve prompt attention. A non-closing overhead door can affect access, security, deliveries, and employee safety. Commercial openings may also have different sensor arrangements and heavier door hardware that require a more complete diagnosis.

Fix My Garage Door provides practical sensor and opener troubleshooting for homeowners and businesses throughout Loveland, Greater Cincinnati, and Northern Kentucky. A trained technician can determine whether the issue is alignment, wiring, the opener, or a separate door problem before a small malfunction turns into a door that will not operate at all.

A steady sensor light and a successful obstruction test are reassuring, but keep watching how the door operates over the next few cycles. If it closes smoothly and reverses when the beam is blocked, the system is doing the job it was built to do: helping protect the people and property that pass through your garage every day.
